Bar Code in Pieces List Excel Report

The Bar Code functionality in the Pieces List Excel report is different than the Main Marker Excel report

To have Bar Codes in the Excel report generated form the Pieces List:

  1. Create Bar Codes on your pieces.

  2. Open the Pieces List

  3. Right click an empty space in the pieces list to open the settings:

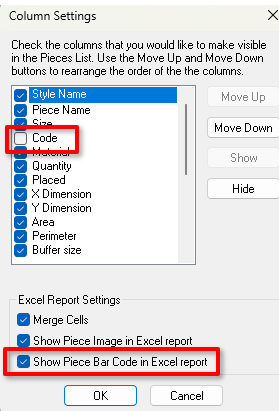

    The Column Settings dialog opens.

  4. Deselect Code.

  5. Select Show Piece Bar Code in Excel report:

  6. Click OK.

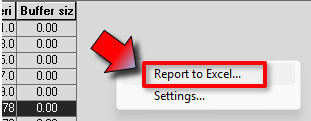

  7. Right click an empty space in the pieces list to generate the Excel Report:

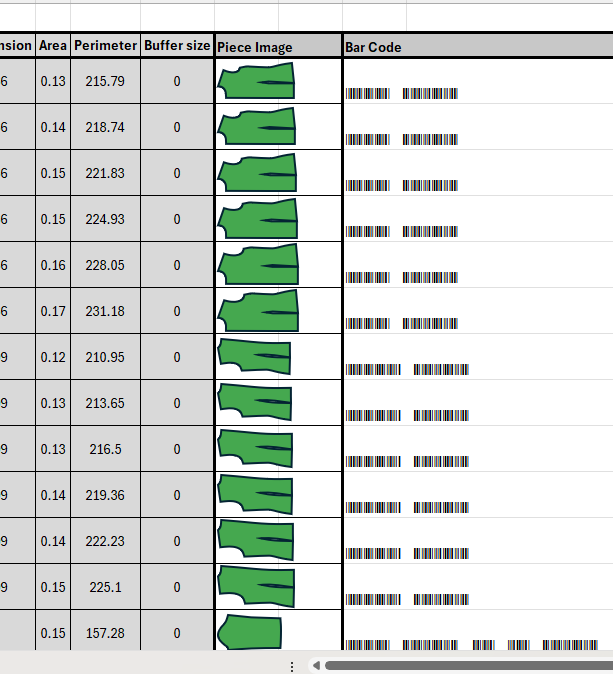

  8. The resulting report includes the Pieces Bar codes column:
